Anker B17B31A1 3840Wh SOLIX F3800 Backup Kit w/ 50A Switch, 10 Circuit Transfer Switch

Anker B17B31A1 3840Wh SOLIX F3800 Backup Kit w/ 50A Switch, 10 Circuit Transfer Switch

by Anker Solix
$599.00 - $599.00
$599.00
$599.00 + Free Shipping
$599.00 - $599.00
$599.00 + Free Shipping

Ships Factory Direct
×
This item will ship from the manufacturer within 3 to 5 business days.
Condition: New
SKU: AKR-B17B31A1
Features
  • Designed with plug & play home backup capability (accessories sold separately).
  • 6000W, 120 & 240V split-phase output in one unit for power-hungry appliances.
  • 3.84–26.9kWh expandable capacity with up to 6 BP3800 expansion batteries.
  • Scales up to 12000W and 53.8kWh for extended power outages.
  • 2400W solar input charges from 0 to 80% in just 1.5 hours with sunlight.
  • Equipped with NEMA 14-50 & L14-30 outlets for direct EV and RV charging.
  • Smart energy monitoring via app control through Bluetooth and WiFi.
  • Long-lasting LFP battery with a 5-year hassle-free warranty.
  • Industry-leading components ensuring up to 10 years of lifespan.

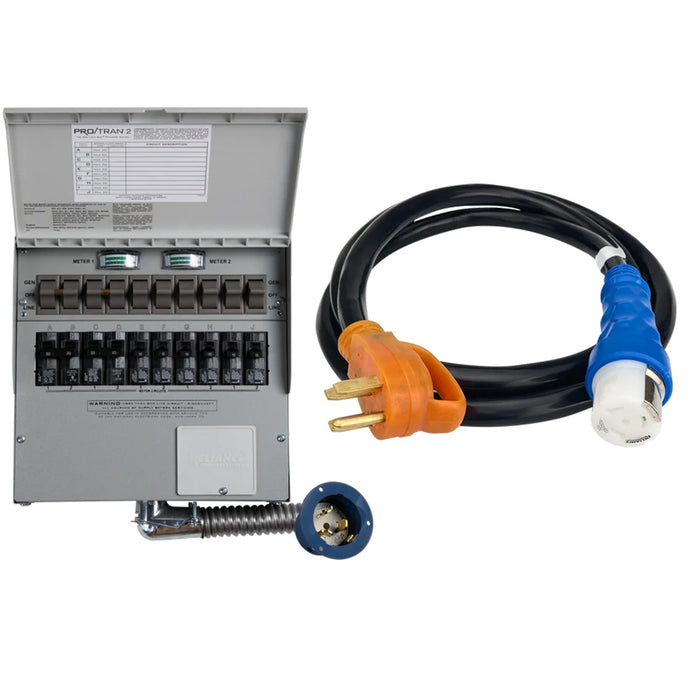

What's in The Box
  • Transfer Switch
  • (1) Transfer Switch
  • (1) SS2-50R to L14-50P Power Cord
  • (50A, 3 m)
  • (1) User Manual
  • (1) Warranty card
Warranty
  • 5 Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU B17B31A1
Brand Anker
Battery Type LiFePO4 Cell
Cell Part Number 32140FS-15000mAh
Cell Count 80
Cell Capacity 51.2Vdc 75Ah / 3840Wh
AC Input 120V~ 15A Max (3 hrs), 12A Continuous, 60Hz L+N+PE
AC Input Power (Charging) 1800W Max
AC Input Power (Bypass Mode) 1440W Max
Solar Panel Input 11-32V⎓10A; 32V-60V⎓25A (1200W Max Each)
Car Charger Output 12V⎓10A
Home Panel Power Port 3800W Max Input / 6000W Max Output, 20V/240V, L1+L2+N+PE
Total AC Output Power 6000W Max
AC Output 1 120V~ 20A Max, 60Hz, 2400W Max
AC Output 2 120V~ 20A Max, 60Hz, 2400W Max
AC Output (NEMA 14-50 / L14-30) 120V/240V~ 25A Max, 60Hz, 6000W Max
USB-A Output 5V⎓2.4A (12W Max per port)
USB-C Output 5V⎓3A / 9V⎓3A / 15V⎓3A / 20V⎓3A / 20V⎓5A (100W Max per port)
UPS Response Time 20ms
Discharging Temperature -4°F to 104°F
Charging Temperature 32°F to 104°F
Product Size 27.6 × 15.3 × 15.6 in
Net Weight 132.2 lbs
Backup Kit SKU B17B31A1
Voltage 120/240V
Frequency 60 Hz
Rated Watts 12500 Watts
Rated Amps 50 Amps
Enclosure NEMA 1R
Conduit Length 18 in
Number of Circuit Breakers 10
Max Amp Input 50 Amps
Maximum Wattage 12500 Watts
UL Listed Yes
Backup Kit Dimensions 11.25 × 11.75 × 4.5 in
Backup Kit Weight 20 lbs
Expansion Battery SKU A1790111-85
Expansion Battery Capacity 51.2Vdc 75Ah / 3840Wh
Expansion Battery Port Input 75A Max
Expansion Battery Port Output 170A Max
Expansion Battery Discharging Temp -4°F to 104°F
Expansion Battery Charging Temp 32°F to 104°F
Expansion Battery Size 15.5 × 14.0 × 10.3 in
Expansion Battery Weight 72 lbs
