| SKU |
AX170J40 |
| Product Name |

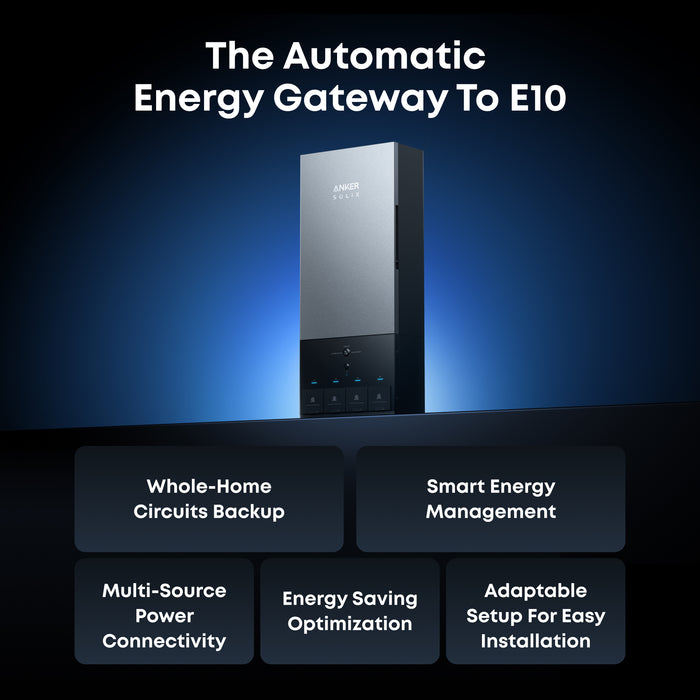

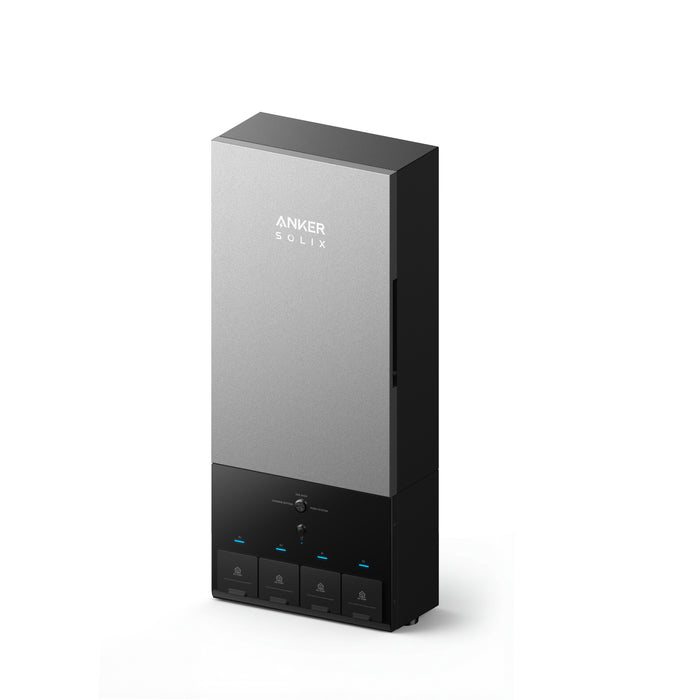

Anker SOLIX Power Dock |
| Model |
AX170J40 |
| Performance Specifications |
| Rated Voltage |
120/240 VAC (Split Phase) |
| Rated Frequency |
60 Hz |
| Switchover Time (On-Grid to Off-Grid) |
<20 ms |
| Switchover Time (Off-Grid to On-Grid) |
0 ms |

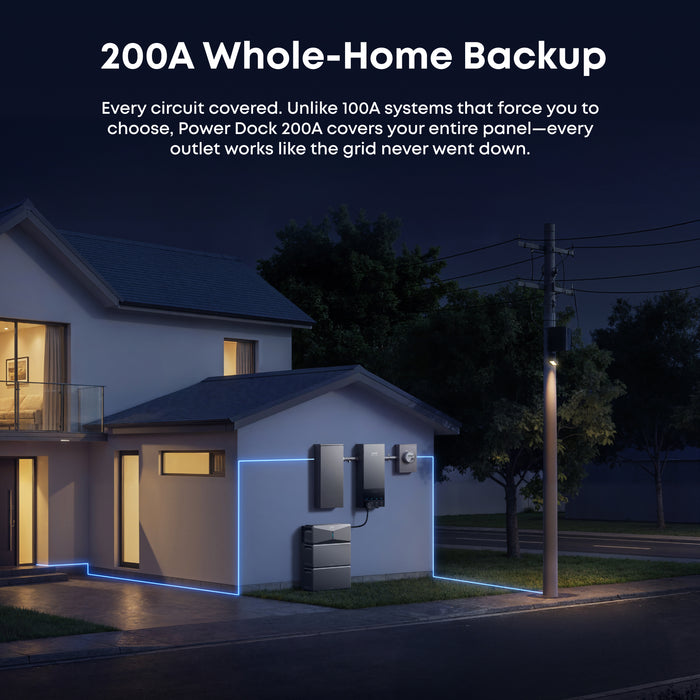

| Grid Connection |
| Current Rating |
200 A Maximum, 160 A Continuous |
| Subpanel Connection |
| Current Rating |
200 A Maximum, 160 A Continuous |
| Plug & Play AC Port |
| AC Ports |
4 |
| Continuous Current Rating per Port |
100 A |
| Continuous Current Rating Total 4 Ports |
100 A (Connected to One Breaker), 160 A (Connected to Two Breakers) |
| Integrated Circuits |
| Circuits 1 & 2 Current Rating (Load or Generator) |
100 A Maximum, 80 A Continuous |
| Circuits 7 & 8 Current Rating (Load or AC Solar) |
80 A Maximum, 64 A Continuous |
| Circuits 3,4,5,6,9,10,11,12 Current Rating (Load) |
60 A Maximum, 48 A Continuous |
| Circuits for Batteries Current Rating |
125 A Maximum, 100 A Continuous |
| Others |
| Connectivity |
Wi-Fi, Bluetooth |
| Installation Option |
Wall Mounting |
| Dimensions (W × H × D) |
36.1" × 15" × 7.1" (916 × 380 × 180 mm) |
| Weight |
60 lbs (27.2 kg) |

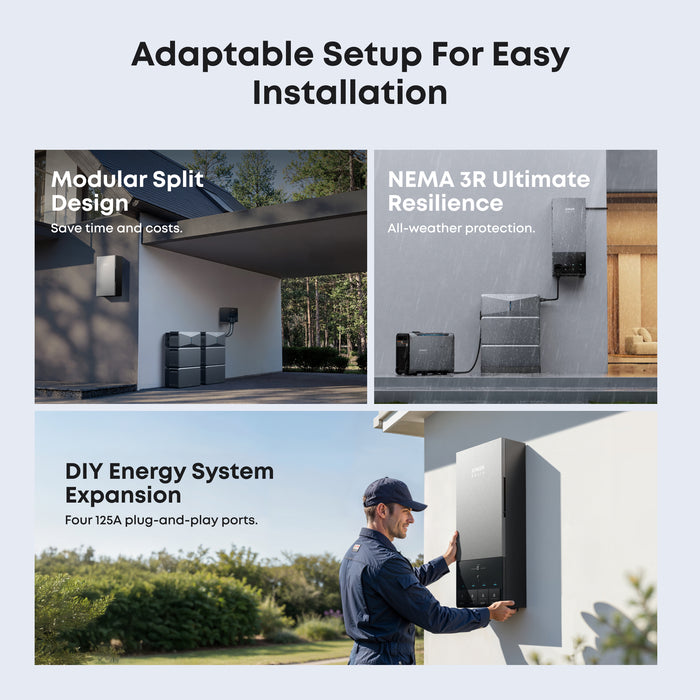

| Enclosure Type |
NEMA TYPE 3R |
| Operating Temperature |
-4 °F to 131 °F (-20~55 °C) |
| Warranty |
10 Years |
| Certification Information |
ATS Box = UL 67, UL 1741, UL 1741 CRD, UL 3141, UL 869A, CSA C22.2 No. 107.1-16, CSA C22.2 No. 29-15, 47 CFR Part 15, ICES-003, CP65, TSCA, PFAS; Combiner Box = UL 1741, CSA C22.2 No. 107.1:16, ANSI/CAN/UL 9540, 47 CFR Part 15, Subpart B, 47 CFR Part 15, Subpart C 15.247, ICES-003, RSS247, CP65, TSCA, PFAS |
| What's in the Box |
Accessories = L1 Current Transformer ×1, L2 Current Transformer ×1, PV Current Transformer ×1, 4×200 mm Cable Ties ×3, Circuit Breaker Bracket ×1, M3×8 Phillips Pan-Head Combination Screw ×2, M4×12 Phillips Pan-Head Combination Screw ×1, M6×50 Imperial Hex-Head Self-Tapping Screw ×8 |
| Documents |
QSG, Safety |
