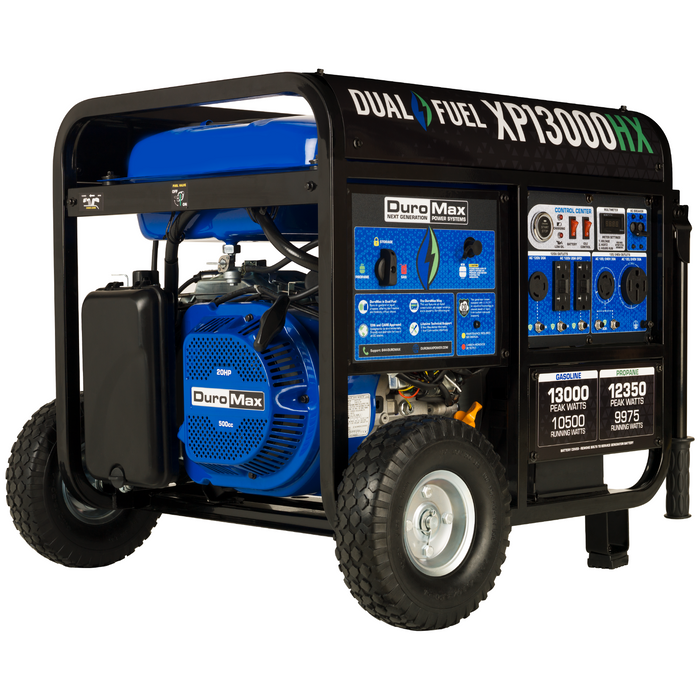

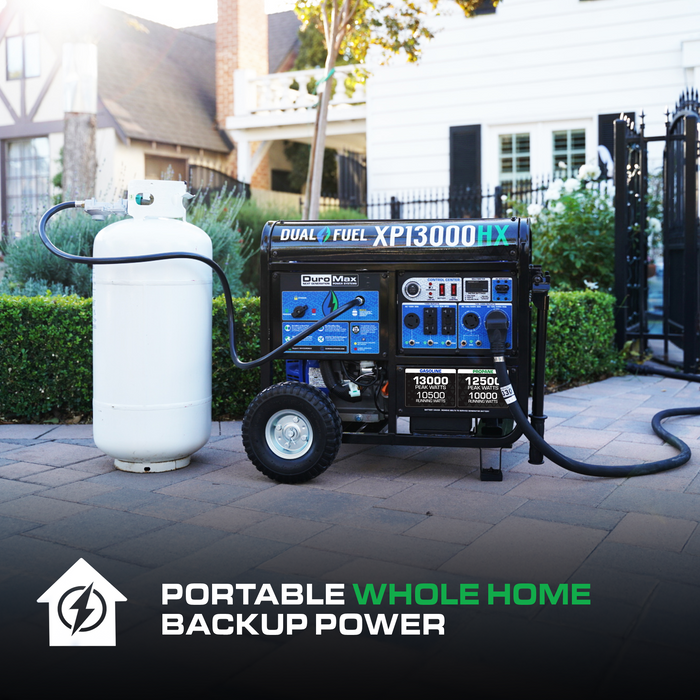

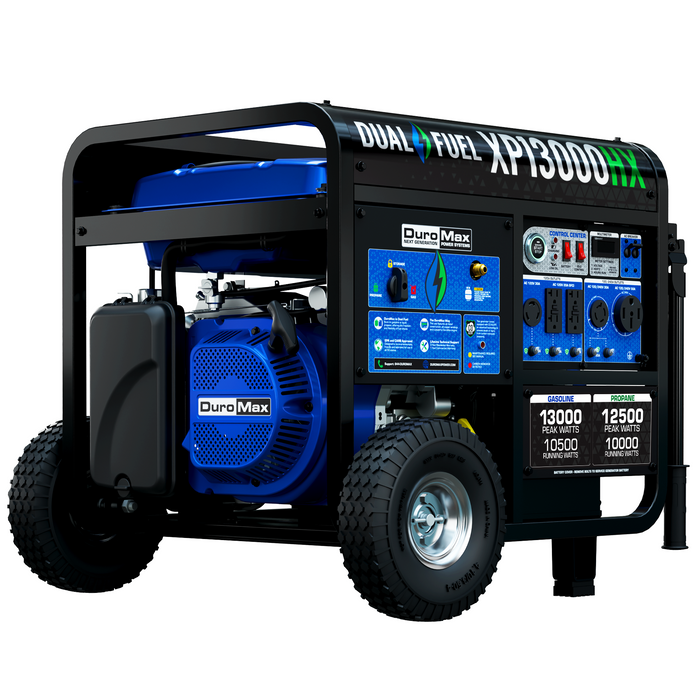

The XP13000HX is the crown jewel of the HX Series with 13,000 watts of POWER. This unit provides the power
normally found in stationary home standby generators but in a more affordable, portable package! With a

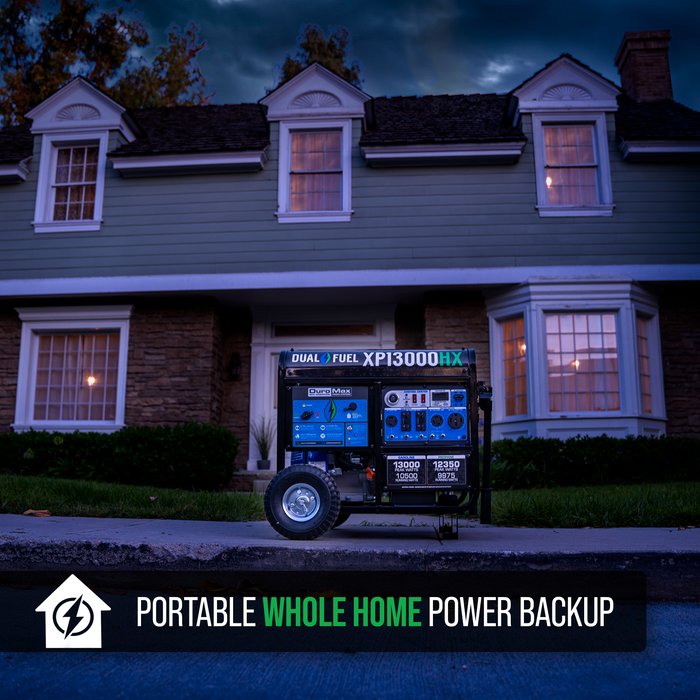

500cc OHV DuroMax Engine, this workhorse is PERFECT for HOME BACK UP and can power most household essentials
such as lights, appliances, and even central A/C systems during any power outage, storm, or emergency event.
Key Features
RUNS ON GAS OR PROPANE
Runs on gasoline or liquid propane, offering the freedom and
flexibility of fuel choice
EQUIPPED WITH CO ALERT
An advanced technology to keep your family safe and sound from
harmful engine fumes.
DIGITAL COMMAND CENTER
Track voltage output, operating frequency, and maintenance hours.
PUSH BUTTON START
With Push Button Start, starting your generator is as easy as
starting your car.
Features

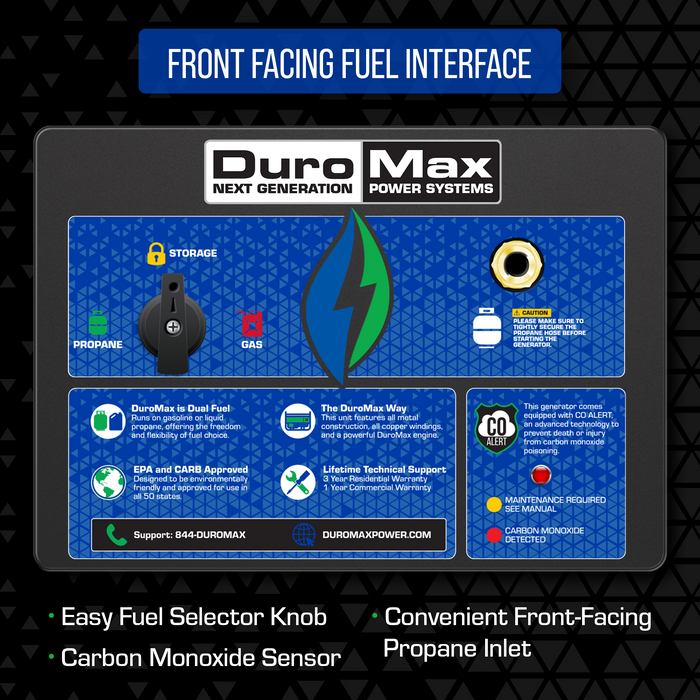

All-new control center with a digital multimeter, push-button start, and a front-facing fuel interface
allowing you to change your fuel type in seconds! The digital multimeter displays voltage, frequency,
total hours run, and hours until the recommended maintenance.

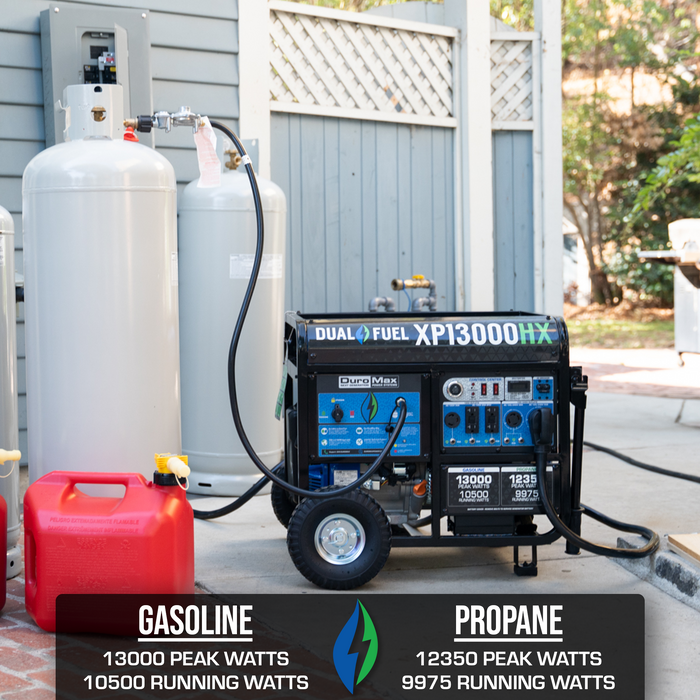

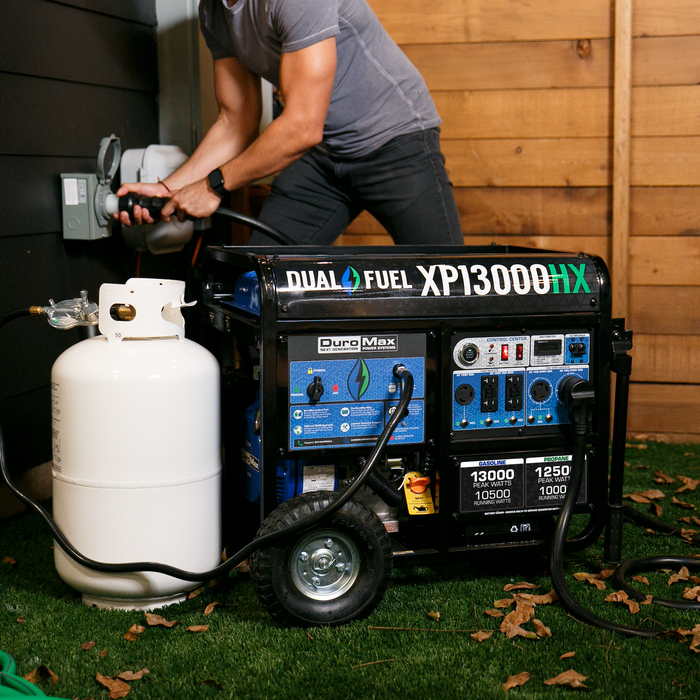

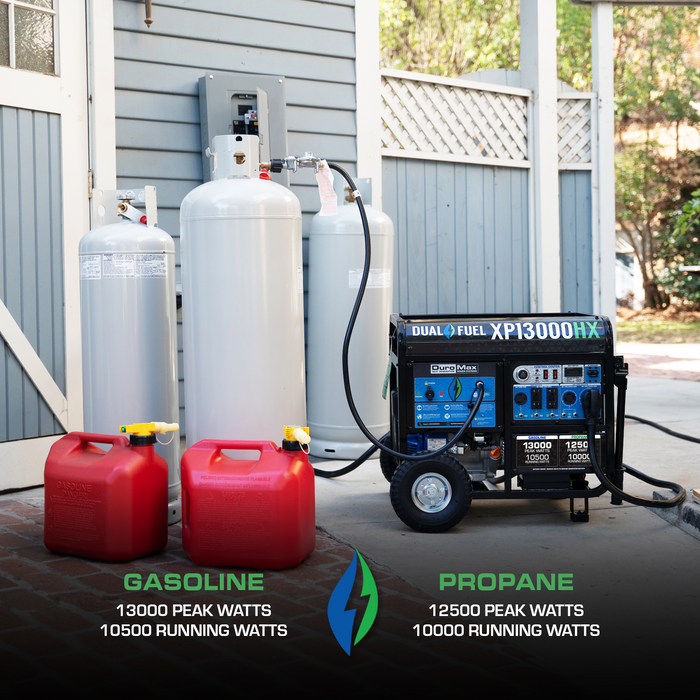

This generator runs on gasoline or propane, giving you the freedom and flexibility of fuel choice.

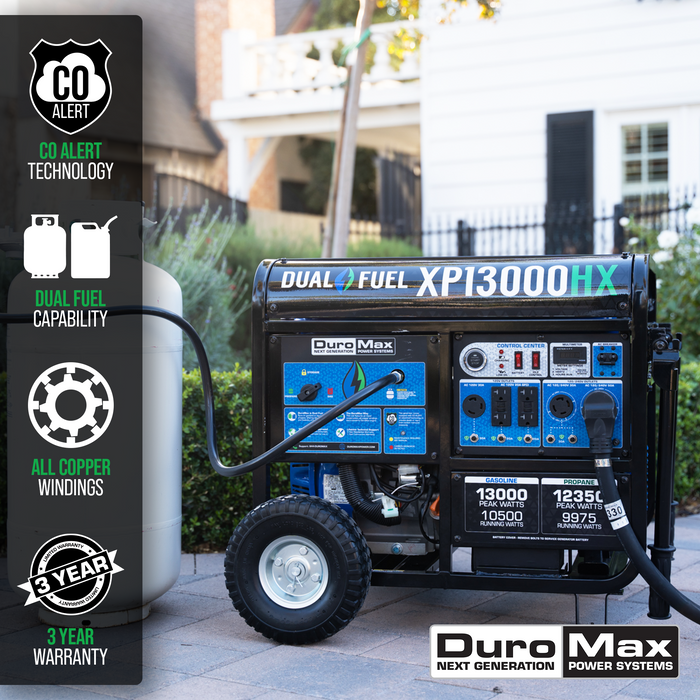

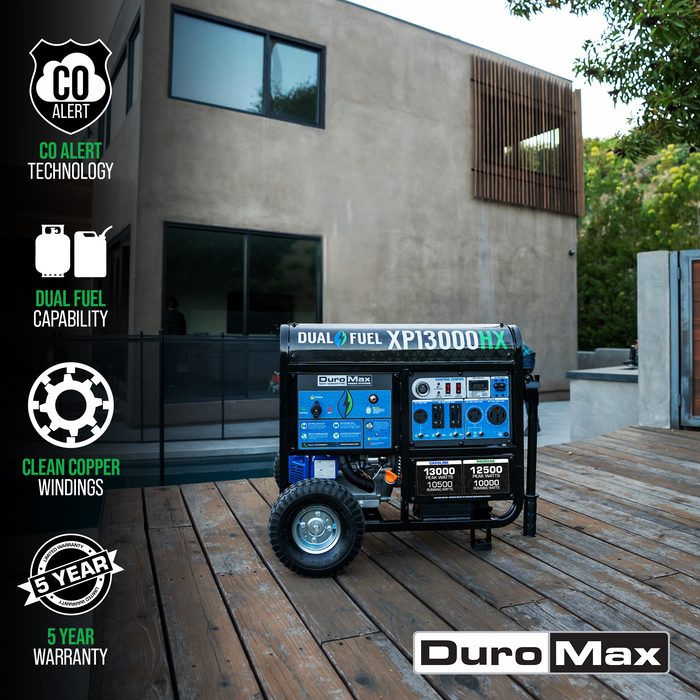

Equipped with DuroMax CO Alert technology that will automatically shut down the generator if an unsafe
level of carbon monoxide is detected.
Built using a powerful 500cc OHV DuroMax engine and features ALL COPPER WINDINGS designed to make your
generator last for years.

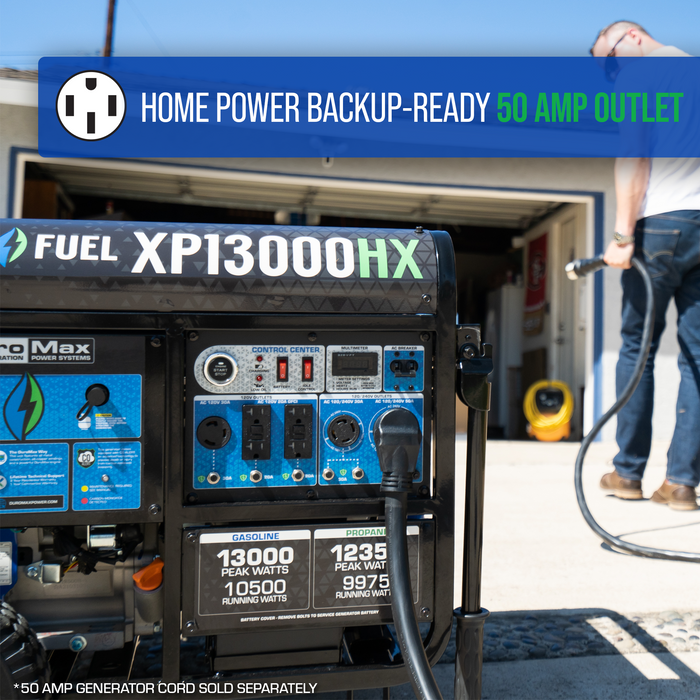

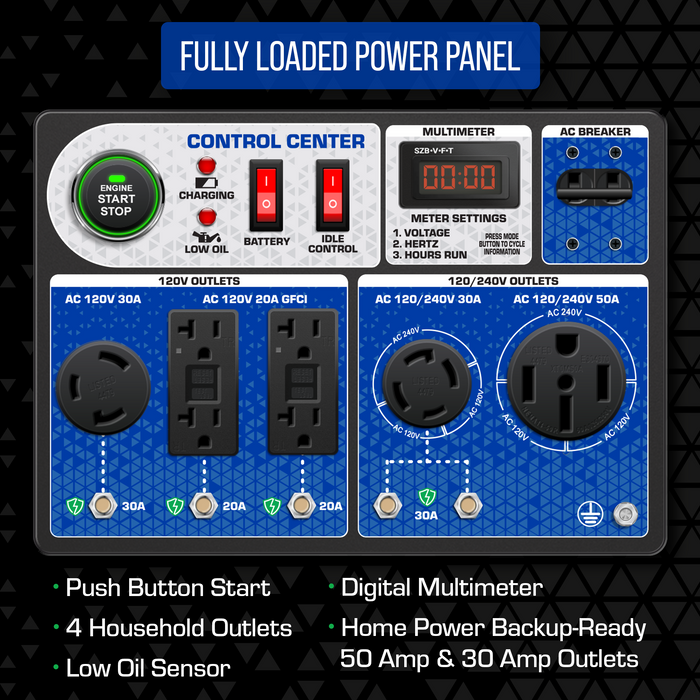

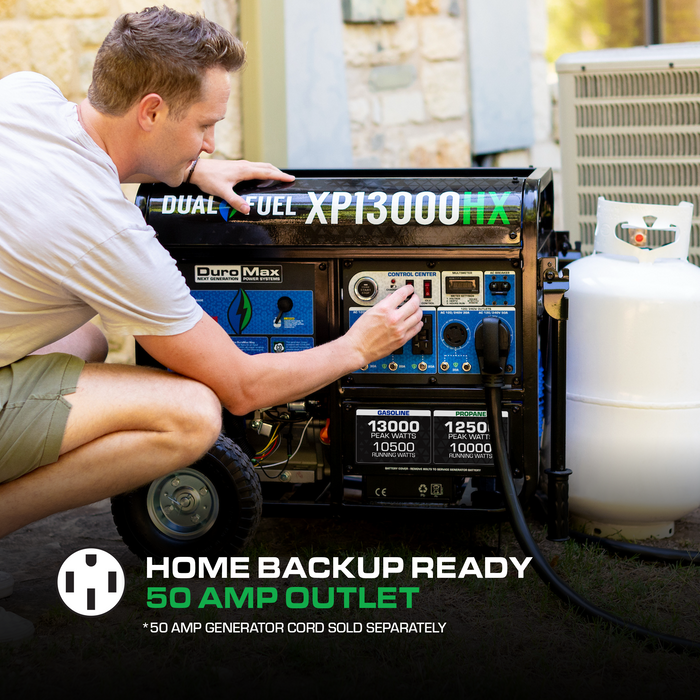

The fully loaded power panel includes four 120V GFCI household outlets, one 120V 30AMP outlet, one
120/240V 30AMP twist-lock outlet, and a heavy-duty 120/240V 50AMP outlet making it transfer switch
ready!
Onboard the XP13000HX are individual circuit breakers, idle control, and a low oil sensor.
Only as Strong as Its Core. The DuroMax XP13000HX Generator has a Cast-Ironed
Sleeved, 500cc Engine rated at 20 HP delivering a peak of 13000 surge watts / 10500 Constant. This is a
sufficient amount of power that can handle high requirement loads as well as multiple small load
appliances simultaneously. Designed for Safe and Easy Operation, the XP13000HX features a user-friendly,
Electric Start, that's as simple as starting your car. It is also equipped with a recoil start in case

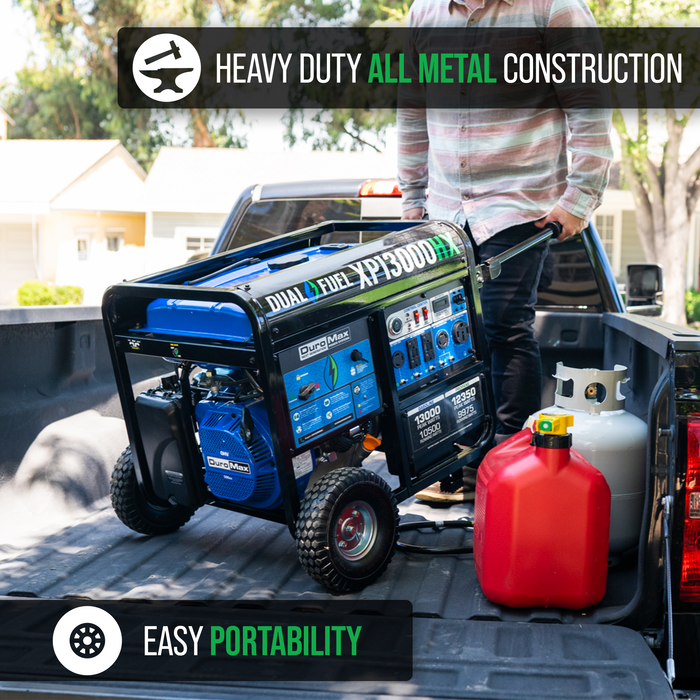

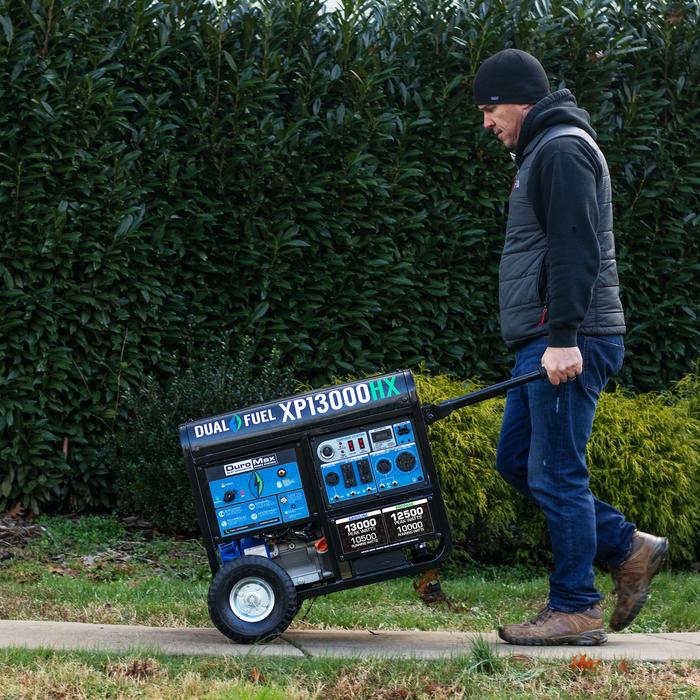

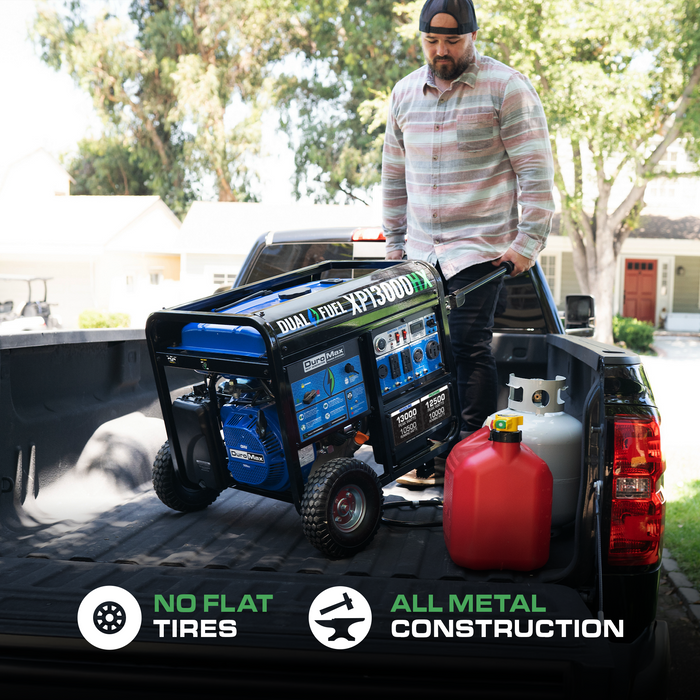

of the battery being drained. Solid-Fill tires are also standard, they will never run flat, and high
leverage handles that make it easy to transport over every terrain. (except water - we are working on
skus). The attached oversized noise reducing Muffler has a built-in Spark Arrestor for safe use in
mandated camping areas and jobsites. All DuroMax Generators are user-friendly and are ready to use out
of the box within minutes. Simply remove all packaging, assemble the wheels and handles, add Oil and Gas
and it is ready to begin producing power.
Safe & Reliable Operation for Any User. Designed for Safe and Easy Operation, the
XP13000HX features a user-friendly, Electric Start, that's as simple as starting your car. It is also
equipped with a recoil start in case of the battery being drained. Solid-Fill tires are also standard,
they will never run flat, and high leverage handles that make it easy to transport over every terrain.
The attached oversized noise reducing Muffler has a built-in Spark Arrestor for safe use in mandated
camping areas and jobsites.
Easy Out of Box Operation & Peace of Mind.
All DuroMax Generators all carry a 5 Year Factory Warranty so if for any reason your generator gives you
problems simply let us know and we will do our best to make it right. As always DuroMax offers its 30
Day Satisfaction Guarantee standard on every item we sell. All DuroMax Generators are ready to use out
of the box within minutes. Simply remove all packaging, add Oil and Gas and it is ready to begin
producing power.

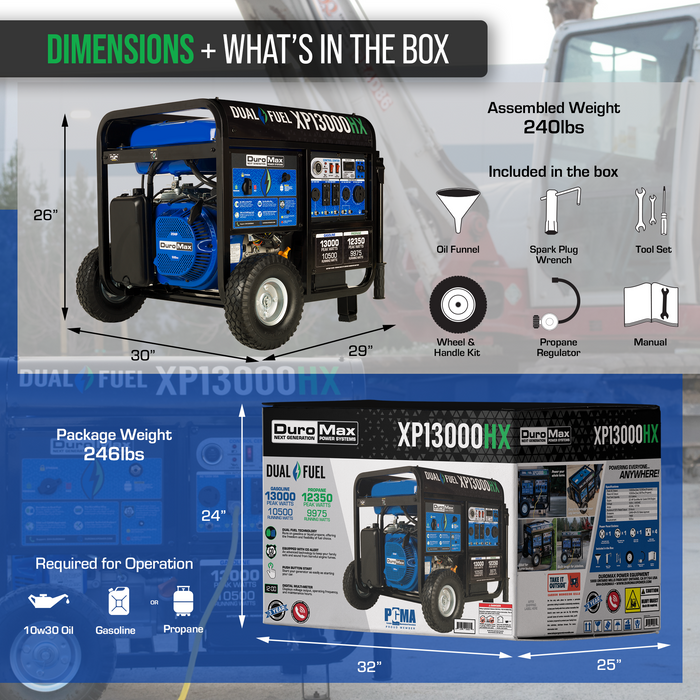

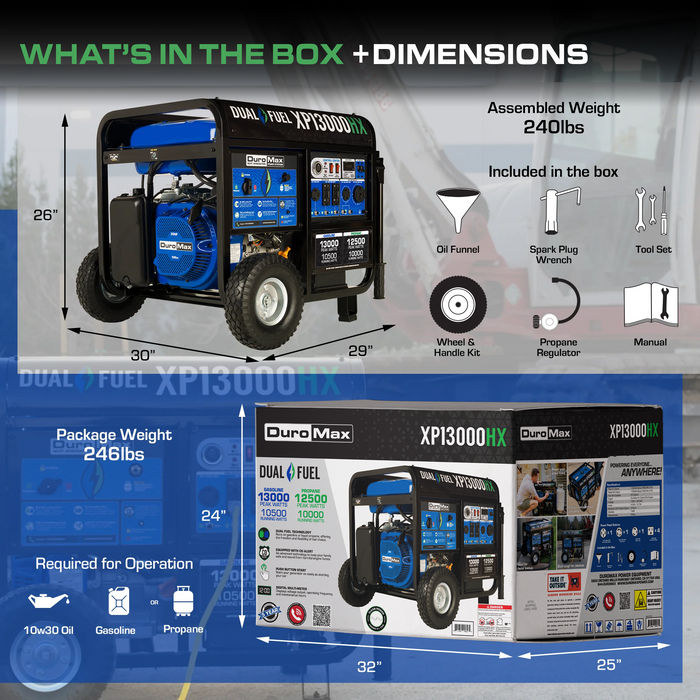

What's in The Box
DuroMax XP13000HX Electric Start Generator.
Oil Funnel.
Spark Plug Wrench.
Tool Set.
Wheel and Handle Kit.
4 Foot Propane Hose w/ Regulator.
Owner's Manual.
Warranty
5-Year Residential Limited Factory Warranty.
1-Year Commercial Limited Factory Warranty.
Specifications
Sku
XP13000HX
Brand
DuroMax Power Equipment
Gasoline
Peak Wattage
13,000
Running Wattage
10,500
Running Amperage at 120V
87.5
Running Amperage at 240V
43.75
Runtime at 25% Load
17
Runtime at 50% Load
8.5
Propane
Peak Wattage
12,350
Running Wattage
9,975
Running Amperage at 120V
83.13
Running Amperage at 240V
41.56
Runtime at 25% Load
13
Runtime at 50% Load
6.5
Engine Specification
Engine Type
4-Stroke
Valve Type
OHV
Engine Cooling Type
Forced Air
Engine Size
500cc
Engine Speed
3600 RPM
Starting Type
Push Button
Electric Start
Yes
Recoil Start
Yes
Idle Control
No Load Low Idle
Fuel Delivery System
Carburetor
Fuel Types
Gasoline and Propane
Oil Cooling Type
Splash
Recommended Oil
10W-30
Recommended Oil Types
Blended, Conventional, or Synthetic
Oil Capacity
40.5 fluid oz
Suggested Propane Tank Size
40 lbs. minimum
Automatic Low Oil Shutdown
Yes
Cast Iron Sleeve
Yes
Bearing Type
Stainless Steel Ball Bearing
CO Sensor Shutdown
Yes
EPA Certified
Yes
CARB Certified
Yes
50 State Emissions
Yes
Panel Specification
GFCI Outlets
Yes
Battery Switch
Yes
Volt Meter
Digital
Hour Meter
Yes
5-20R
4
L5-30R
1
L14-30R
1
14-50R
1
Generator Specification
Voltage
120/240 Volts
Frequency
60 Hertz
GFCI Outlets
Yes
4 Foot Propane Hose & Regulator
Included
Winding Material
100% Copper Windings
Automatic Voltage Regulator
Yes
Battery Type
12V SLA
Battery Included
Yes
RV Ready
Yes
Home Backup Ready
Yes
Fuel Tank Capacity Gasoline
8.3 Gallons
Fuel Gauge
Yes
All Metal Construction
Yes
Product Dimensions
30"-Long x 29"-Wide x 26"-High
Product Dry Weight
240-lbs
Product Weight
246-lbs
Volume (db)
74 dB
UPC
811640016234
Warranty
5 Year
Wheel & Handle Kit
Included
Wheel Type
Metal Hub
Wheel Diameter
10-Inches
