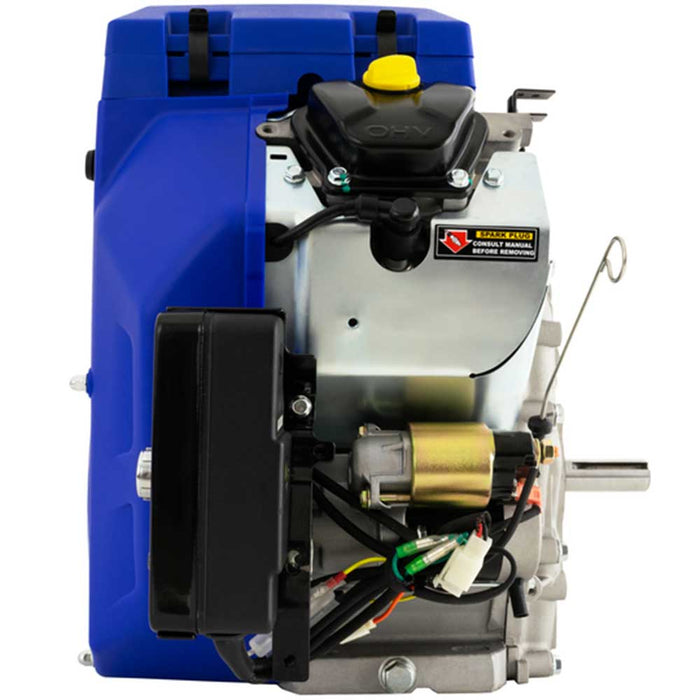

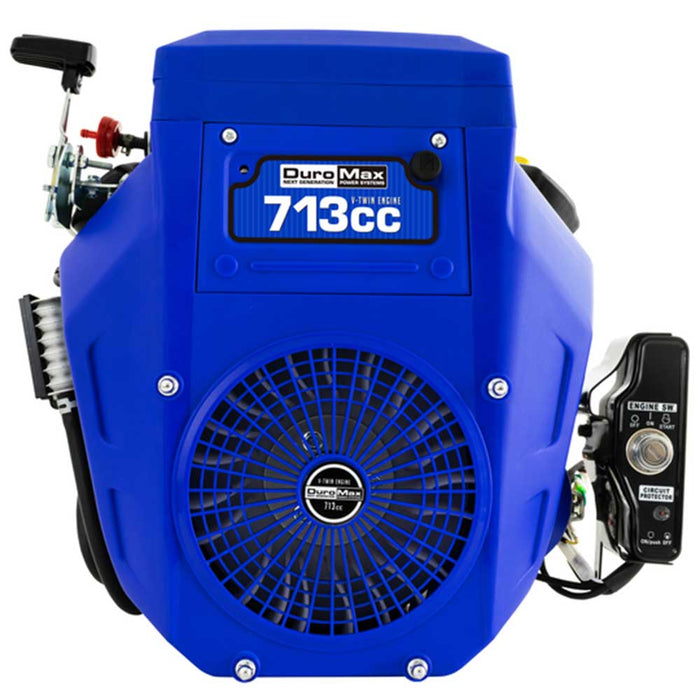

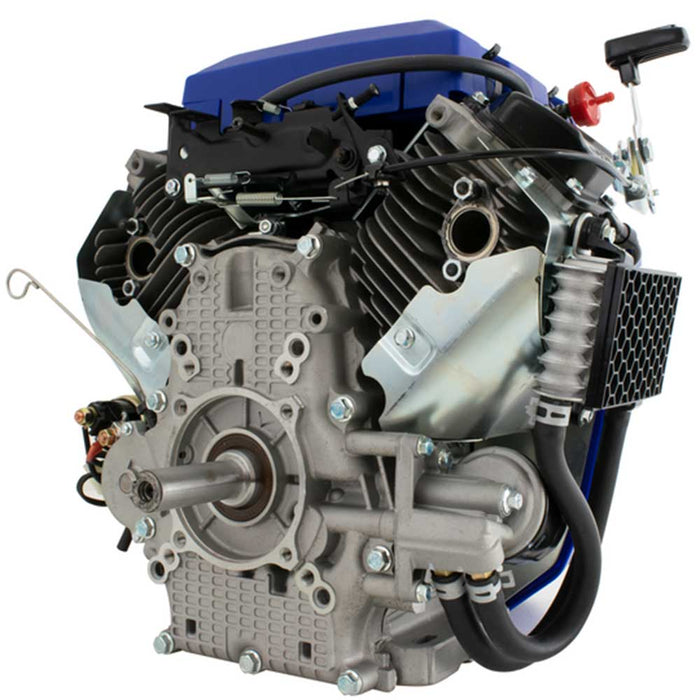

Duromax XP23HPE 713cc V-Twin Engine w/ Electric Start Key Switch Box
- Powerful 713cc V-Twin Engine
- Electric Start Key Switch Box
- Runs on Standard 87 Octane Gasoline
- Full EPA and CARB Compliance allows for operation in all 50 States
- Air Cleaner Dual, Semi-dry, Oil Bath
- Muffler not included
What's in The Box
- 713cc Electric Start Engine w/ Key Switch Box
- Owner's Manual
- 3 Years Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
|Engine Size (CC)||713|
|Max Torque||31.72 ft-lbs at 2500 RPM|
|Bore X Stroke||80 mm x 71 mm|
|Fuel Type||87+ Octane Gasoline|
|Engine Oil Capacity||1.58 qt|
|Bearing Type||Stainless Steel Ball Bearing|

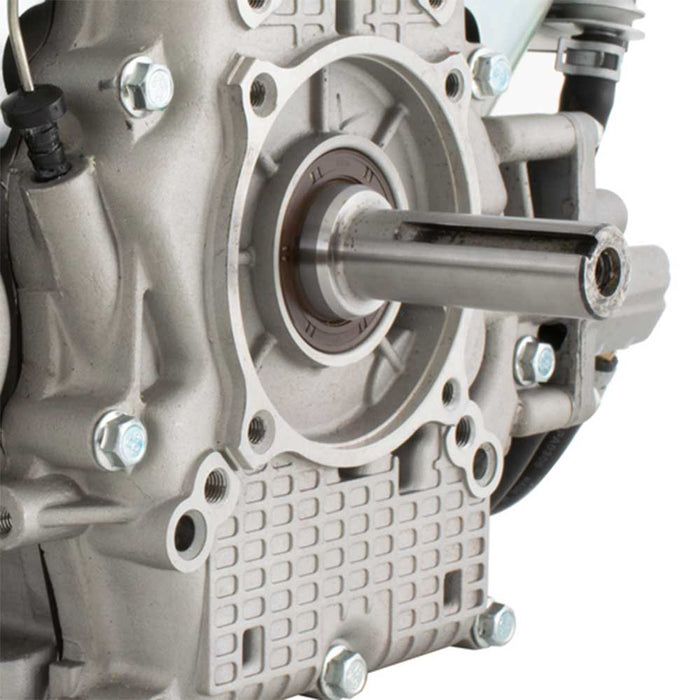

|PTO Shaft Diameter||1 in|
|PTO Shaft Length||3.01 in|
|PTO Shaft Height||5.29 in|
|PTO Shaft Keyway||1/4 in x 2 in|
|Shaft End Tapped||3/8 in 24UNF-2B|
|Shaft Rotation||Counter Clockwise|
|Dimensions (In.)||19.3 L x 18.3 W x 14 H|
|Dry Weight||103.6 lbs|

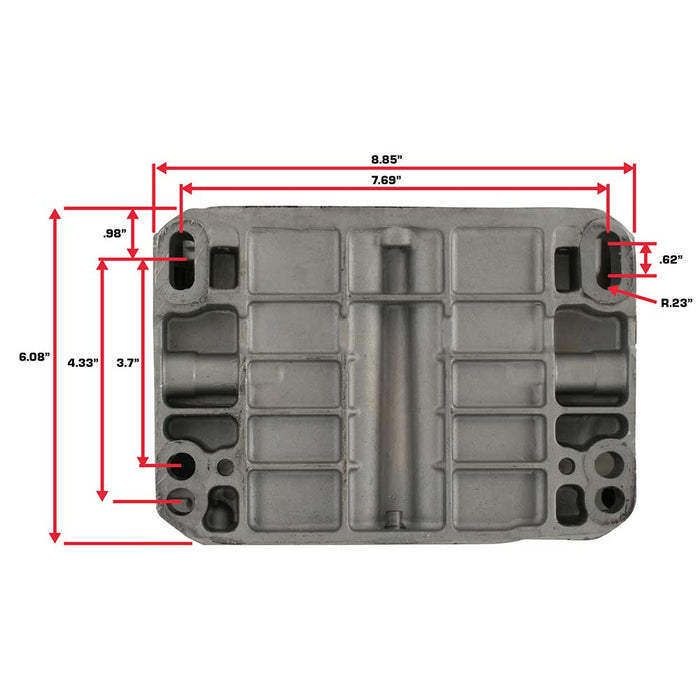

You can download the mounting diagram here
You can download the product documentation here
