Condition: New
SKU: XP5500X
Product Manual
Sales Sheet
Warranty

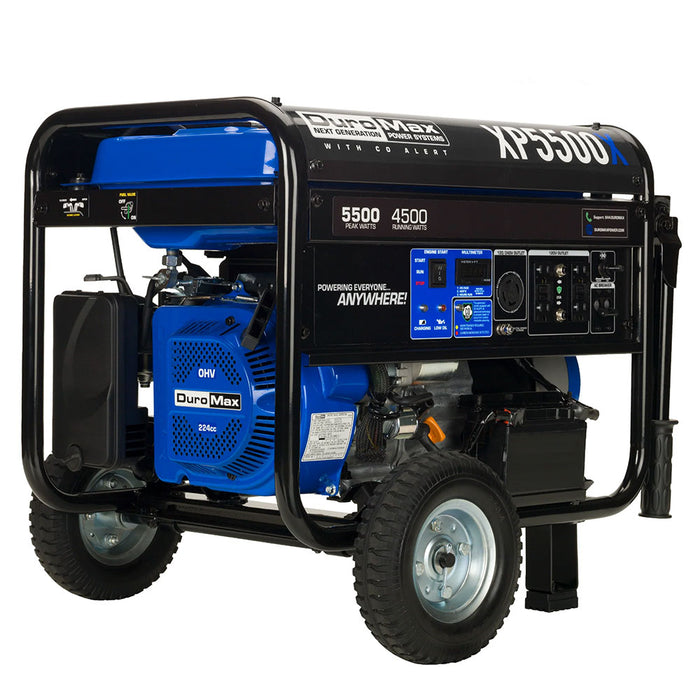

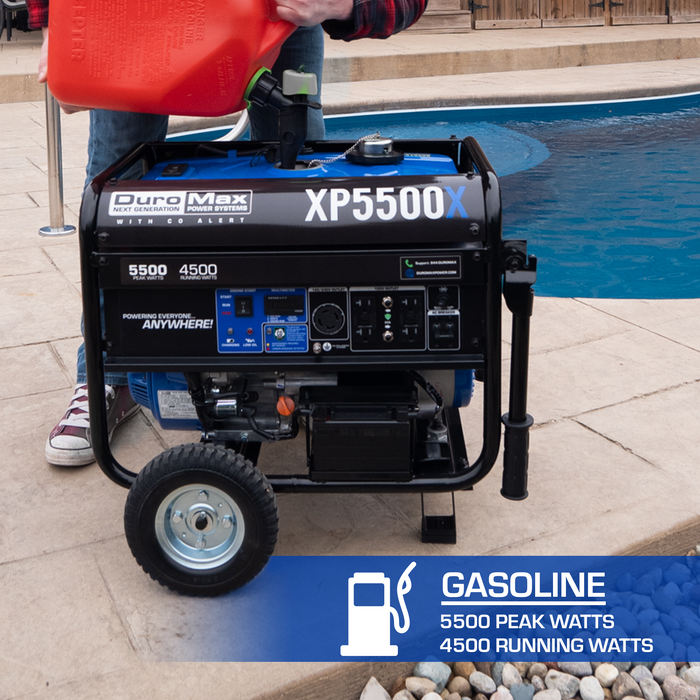

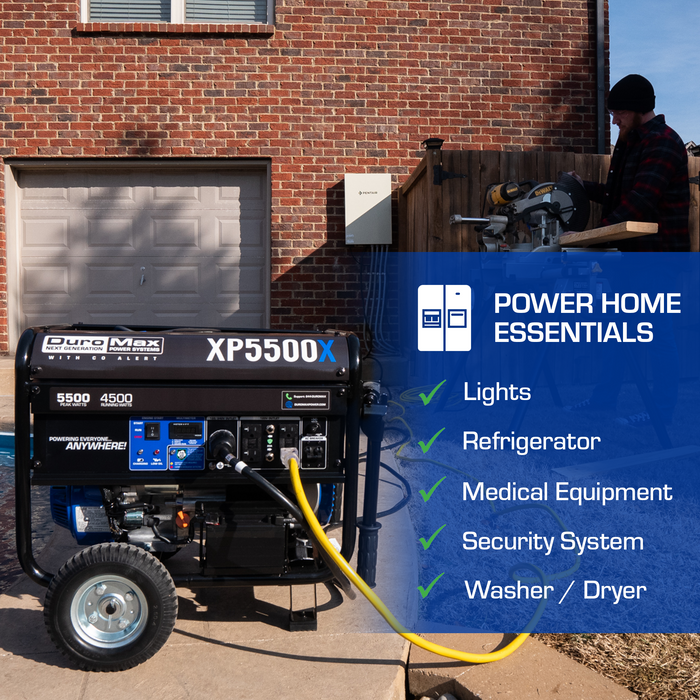

The XP5500X delivers the most power in its class, with 5,500 peak watts and 4,500 running watts. Powered by our 224cc DuroMax OHV engine, this generator is excellent for camping, RVs, power on the jobsite, and will run various household essentials such as lights and appliances when the power goes out.
Key Features
-
MX2 POWER BOOST
Double the 120V power for appliances & RVs.
-
SURGE-ARREST
Protects your generator from power surges.
-
ALL METAL CONSTRUCTION
Built tough to last even on the roughest job sites.
-
EXTENDED RUNTIME
Up to 9 hours on a full tank of gasoline.
Features

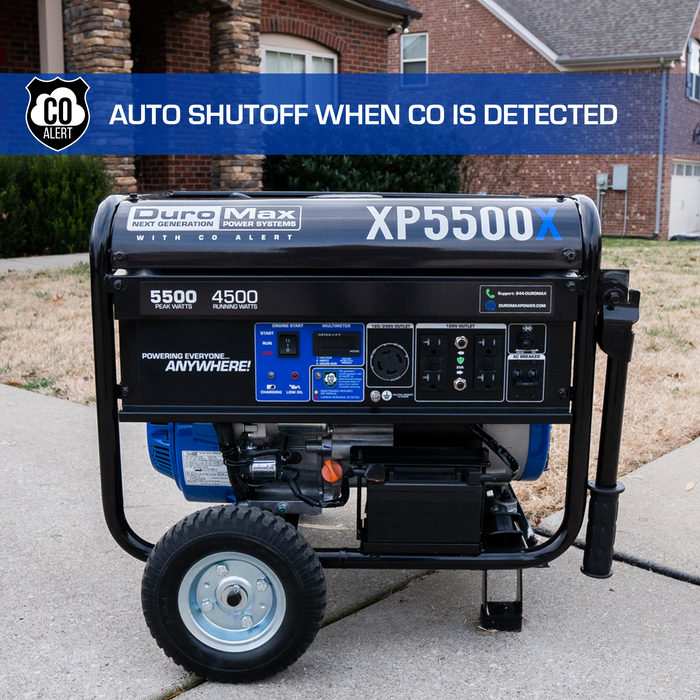

- EQUIPPED WITH CO ALERT: Protects you from harmful engine fumes by automatically shutting down the generator when an unsafe level of carbon monoxide is detected.

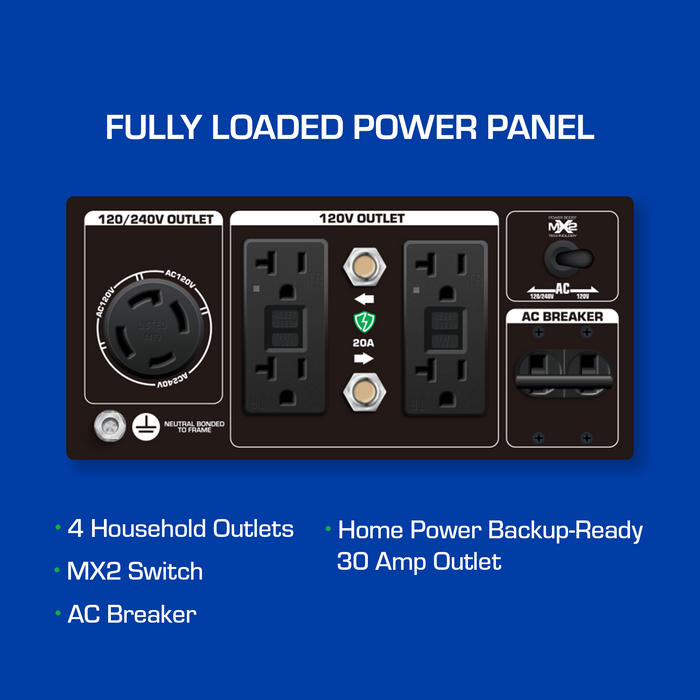

- FULLY LOADED POWER PANEL: This generator comes equipped with a fully loaded power panel with several outlets, including four 120 Volt 20 Amp GFCI outlets and one 120 / 240 Volt 30 Amp twist lock. The panel also includes individual circuit breakers, and low oil sensor.

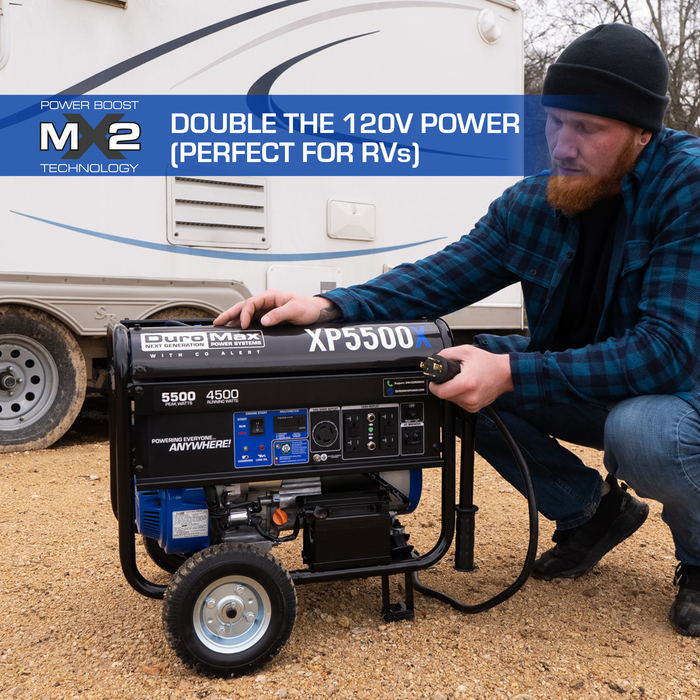

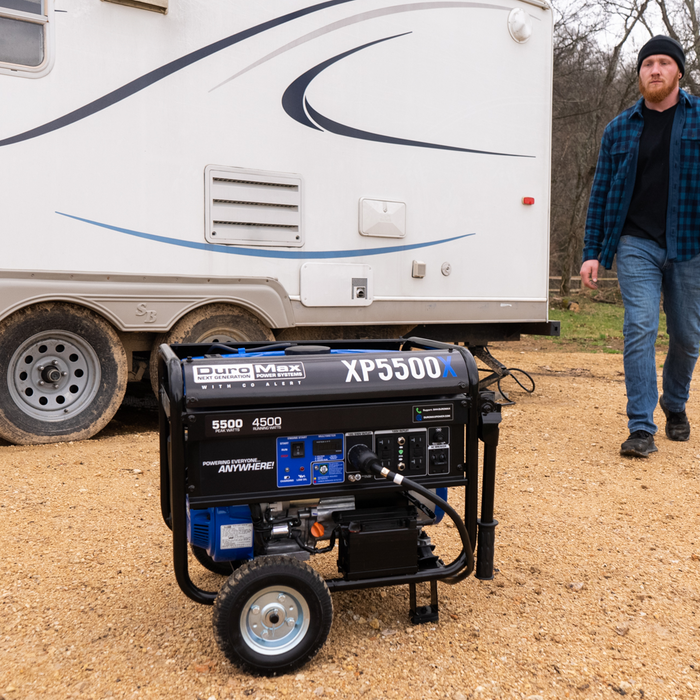

- MX2 SWITCH: Harness the generator's full power by combining the two 120-volt circuits into one powerhouse circuit. Perfect for RVs and on a job site.
- 100% COPPER WINDINGS & ALL-METAL CONSTRUCTION: Designed with high quality and durability in mind. Unlike aluminum windings, premium copper windings double the life of your generator, ensuring it lasts you for years.

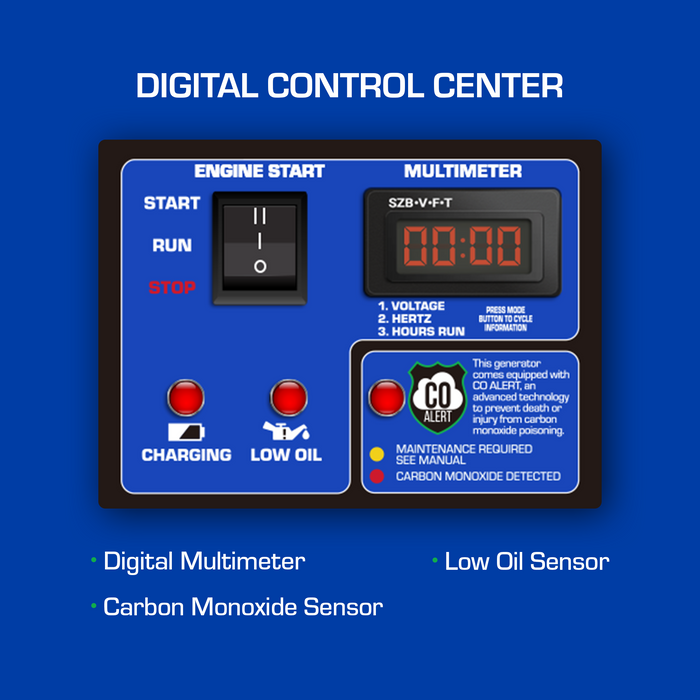

- DIGITAL CONTROL CENTER: Allows you to track voltage output, operating frequency, and maintenance hours at a glance.

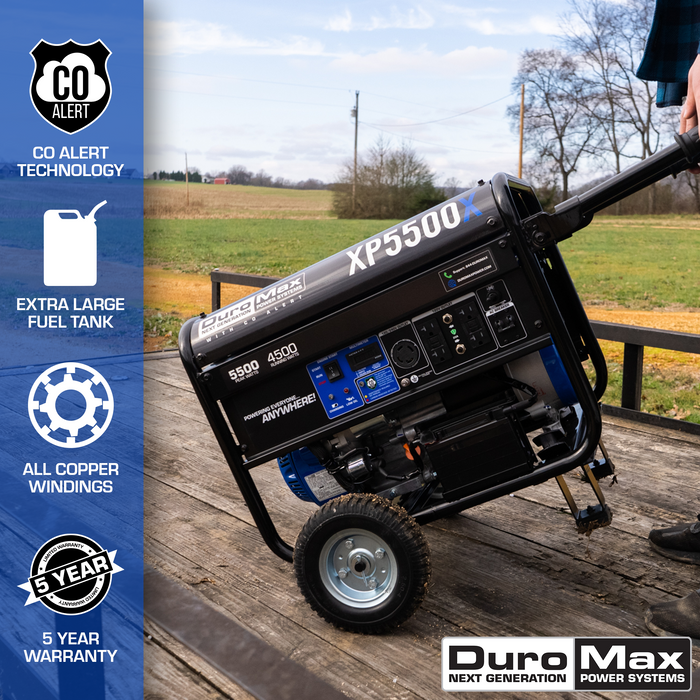

- WHEEL AND HANDLE KIT: This portable generator is easily transported over any terrain, providing power whenever and wherever you need it.
- EPA AND CARB CERTIFIED: Approved for use in all 50 states.
- 5 YEAR WARRANTY: DuroMax DX and X Series generators come with an industry-leading 5 Year Residential Warranty and lifetime customer support.
- INCLUDED IN THE BOX: Oil funnel, plug wrench, tool set, wheel kit, user manual.

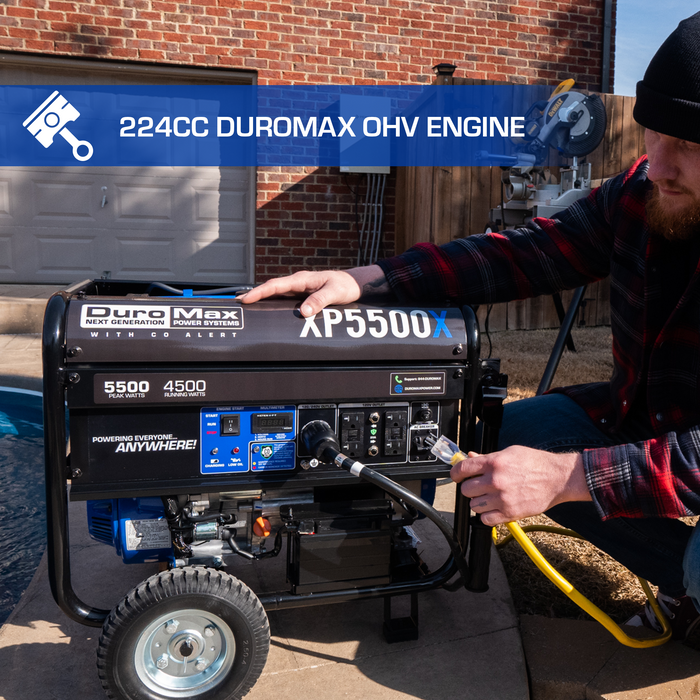

Only as Strong as Its Core.
The DuroMax XP5500X Generator has a Cast-Ironed
Sleeved, 224cc Engine delivering a peak of 5500 surge watts / 4500 Constant. This is a sufficient
amount of power that can handle high requirement loads as well as multiple small load appliances
simultaneously. Designed for Safe and Easy Operation, the XP5500X features a user-friendly, Electric
Start, that's as simple as starting your car. It is also equipped with a recoil start in case of the
battery being drained. Solid-Fill tires are also standard, they will never run flat, and high leverage
handles that make it easy to transport over every terrain. (except water - we are working on skus). The
attached oversized noise reducing Muffler has a built-in Spark Arrestor for safe use in mandated camping
areas and jobsites. All DuroMax Generators are user-friendly and are ready to use out of the box within
minutes. Simply remove all packaging, assemble the wheels and handles, add Oil and Gas and it is ready
to begin producing power.
Safe & Reliable Operation for Any User.
Designed for Safe and Easy Operation, the
XP5500X features a user-friendly, Electric Start, that's as simple as starting your car. It is also
equipped with a recoil start in case of the battery being drained. Solid-Fill tires are also standard,
they will never run flat, and high leverage handles that make it easy to transport over every terrain.
The attached oversized noise reducing Muffler has a built-in Spark Arrestor for safe use in mandated
camping areas and jobsites.
Easy Out of Box Operation & Peace of Mind.
All DuroMax Generators carry a 1 Year Factory Warranty so if for any reason your generator gives you problems simply let us know and we will do our best to make it right. As always DuroMax offers its 30 Day Satisfaction Guarantee standard on every item we sell. All DuroMax Generators are ready to use out of the box within minutes. Simply remove all packaging, add Oil and Gas and it is ready to begin producing power.
What's in The Box
- DuroMax XP5500X Gas Portable Generator.
- Oil Funnel.
- Spark Plug Wrench.
- Tool Set.
- Wheel and Handle Kit.
- Owner's Manual.
Warranty
- 5-Year Residential Limited Factory Warranty.
- 1-Year Commercial Limited Factory Warranty.
- 30 Day Satisfaction Guaranteed.
Specifications
| Sku | XP5500X |
| Brand | DuroMax Power Equipment |
| Gasoline | |
| Peak Wattage | 5,500 |
| Running Wattage | 4,500 |
| Running Amperage at 120V | 37.50 |
| Running Amperage at 240V | 18.75 |
| Runtime at 25% Load | 19 |
| Runtime at 50% Load | 9 |
| Engine Specification | |
| Engine Type | 4-Stroke |
| Valve Type | OHV |
| Engine Cooling Type | Forced Air |
| Engine Size | 224cc |
| Engine Speed | 3600 RPM |
| Starting Type | Rocker Switch |
| Electric Start | Yes |
| Recoil Start | Yes |
| Fuel Delivery System | Carburetor |
| Fuel Types | Gasoline |
| Oil Cooling Type | Splash |
| Recommended Oil | 10W-30 |
| Recommended Oil Types | Blended, Conventional, or Synthetic |
| Oil Capacity | 20.3 fluid oz |
| Automatic Low Oil Shutdown | Yes |
| Cast Iron Sleeve | Yes |
| Bearing Type | Stainless Steel Ball Bearing |
| CO Sensor Shutdown | Yes |
| EPA Certified | Yes |
| CARB Certified | Yes |
| 50 State Emissions | Yes |
| Panel Specification | |
| GFCI Outlets | Yes |
| Volt Meter | Digital |
| Hour Meter | Yes |
| 5-20R | 4 |
| L14-30R | 1 |
| Generator Specification | |
| Voltage | 120/240 Volts |
| Frequency | 60 Hertz |
| GFCI Outlets | Yes |
| Winding Material | 100% Copper Windings |
| Automatic Voltage Regulator | Yes |
| Battery Type | 12V SLA |
| Battery Included | Yes |
| RV Ready | Yes |
| Home Backup Ready | Yes |
| Fuel Tank Capacity Gasoline | 4 Gallons |
| Fuel Gauge | Yes |
| All Metal Construction | Yes |
| Product Dimensions | 27"-Long x 20"-Wide x 19"-High |
| Product Dry Weight | 128-lbs |
| Product Weight | 135-lbs |
| Volume (db) | 69 dB |
| UPC | 811640016555 |
| Warranty | 5 Year |
| Wheel & Handle Kit | Included |
| Wheel Type | Metal Hub |
| Wheel Diameter | 8-Inches |
