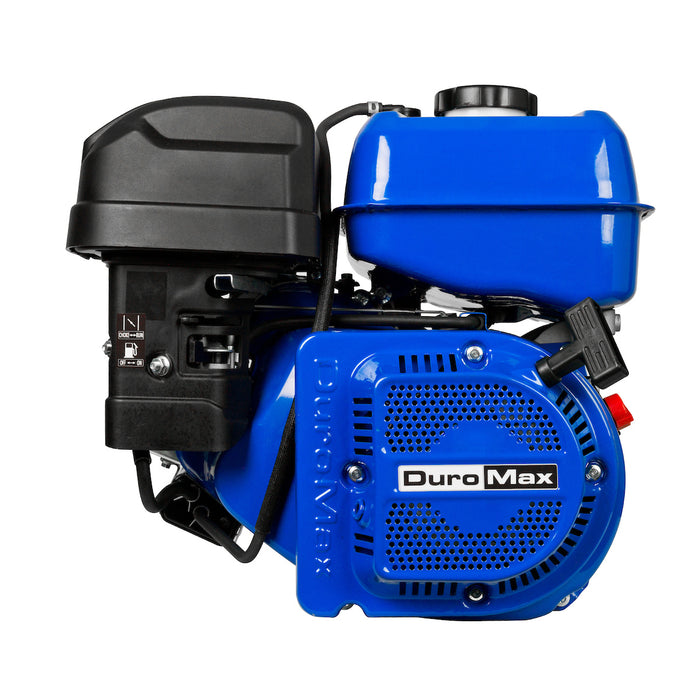

DuroMax XP9HP 274cc 25mm Shaft Recoil Start Gasoline Engine

DuroMax XP9HP 274cc 25mm Shaft Recoil Start Gasoline Engine

by DuroMax
$299.00 - $299.00
$299.00
$299.00 + Free Shipping
$299.00 - $299.00
$299.00 + Free Shipping

Estimate Only, Carrier Delays May Occur
Shipping to
|
Change
Ship To
Condition: New
SKU: XP9HP
XP9HP manual cover Product Manual
XP9HP Warranty Warranty

The DuroMax XP9HP is one of our most compact and lightweight engines available, but don’t let the size fool you; this powerful 274 cc 4-stroke OHV engine has plenty of power for multiple light duty applications including go karts, pressure washers, trailer mounted-mobile carwashes, log splitters, roto tillers- cultivators, and water/trash transfer pumps. The engine is equipped with convenient features like a large 1.3-gallon gas tank for longer runtimes, an E-Z pull recoil starter for starting the engine with ease, and EPA and CARB approved for safe mandated use.

Features
  • 274 cc 4-Stroke OHV engine
  • Large 1.3-gallon fuel tank
  • Runs on standard 87 Octane gasoline or propane

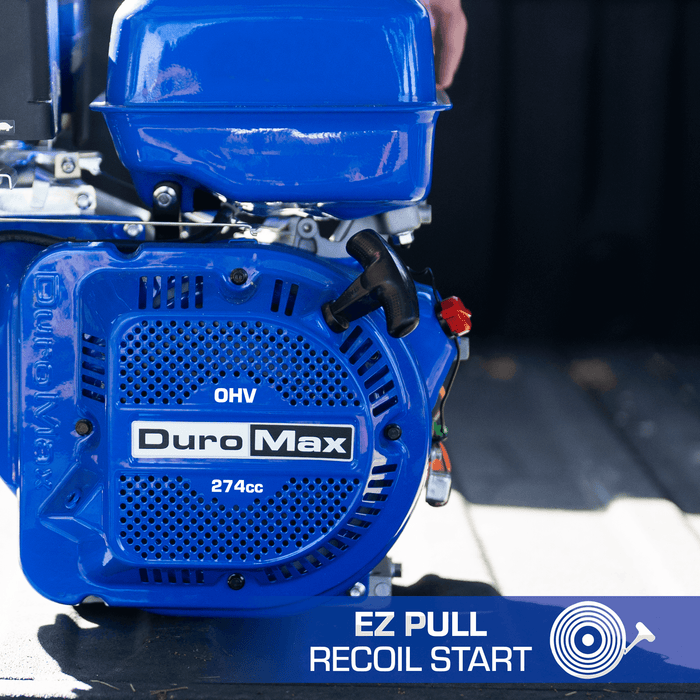

  • E-Z pull recoil starter
  • Air Cleaner: Dual, semi-dry, oil bath
  • EPA and CARB approved for safe mandated use
  • Applications: Go Karts, Pressure Washers, Trailer Mounted - Mobile Carwashes, Log Splitters, RotoTillers - Cultivators, Water/Trash Transfer Pump
What's in The Box
  • DuroMax XP9HP Engine
  • Spark Plug Wrench
  • Oil Funnel
  • Owner's Manual
Warranty
  • 3-Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Specifications
SKU XP9HP
Brand DuroMax Power Equipment
Engine Type 4-Stroke
Valve Type OHV
Engine Cooling Type Forced Air
Displacement 274 cc
Bore 75 mm
Stroke 62 mm
Max Output 3600 rpm
Max Torque 16.5 N·m @ 2500 rpm
Shaft Orientation Horizontal
Shaft Size 0.984” diameter, 2.48” long, 0.276” keyway
Shaft End M10 x 1.25 - drilled and tapped
Shaft Rotation Counter-Clockwise
Measurement from Center of Shaft to Base 4.175”
Fuel Tank Capacity 1.3 gallons
Fuel Types Gasoline
Fuel Delivery System Carburetor
Average runtime on gasoline 2.35 hours
Starting type Recoil Start
Recoil Start Yes
Cast Iron Sleeve Yes
Bearing Type Stainless Steel Ball Bearing
Oil Cooling Type Splash
Oil Capacity 23.67 fluid oz.
Recommended Oil 10W-30
Recommended Oil Types Blended, Conventional, or Synthetic
Product Dimensions 16.4” L x 13.2” W x 15.1” H
Weight 41.9 lbs
UPC 811640016821
EPA Certified Yes
CARB Certified Yes
50 State Emissions Yes
