Features
- For small commercial buildings with 120/240V 3-Phase service
- Runs off natural gas or LP fuel source
- Low-speed exercise mode for quieter weekly tests;61 dB @ 23'
- Two-Line LCD Display provides service and maintenance intervals
- Operates at half the speed of other engines (1800 vs 3600 RPM)
- Powerful Generac in-line 4-cylinder liquid-cooled engine
- Aluminum Enclosure is Corrosion-resistant material ideal for salty air conditions
- Lockable, external viewing window for quick status check
- High coolant temp, low coolant, low oil pressure and overspeed auto-shutdown
- Easily check generator status via computer, tablet or smartphone with Mobile Link
- UL 2200 Listed For Safety and Certified Power Ratings
- Improved stub ups and electrical connection access decrease installation costs. All connections are dual conductor rated, and the implementation of quick connects for the control wires, completely eliminates the need for crimping or lugging.
- Improved customer connection access will decrease installation costs.
- Customize your system based on your actual application
What's in The Box

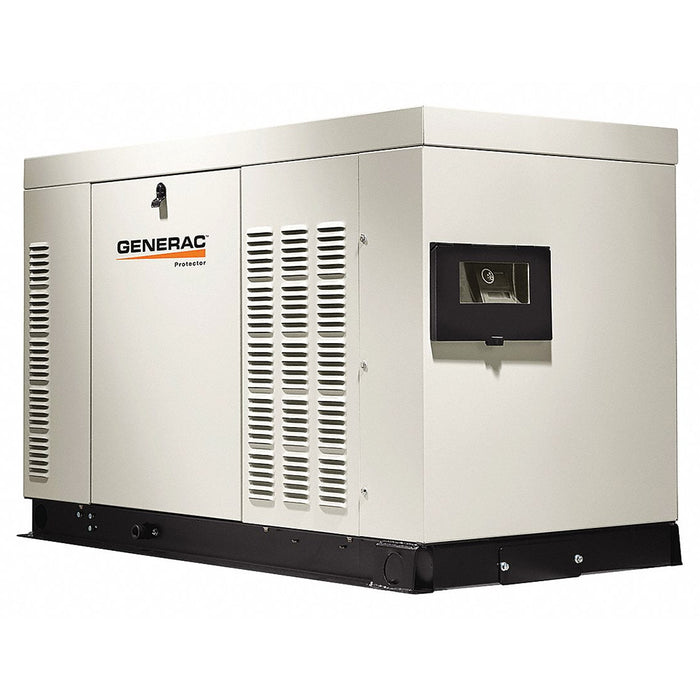

- 22kW 120/240-Volt 3-Phase Protector Automatic Standby Generator
- Mounting Pad Sold Separately
- Owners Manual
Warranty
- 5-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed

Specifications
Sku | RG02224JNAX |
Brand | Generac |
Engine Type | Generac 2.4L 4-Cylinder |
Engine Displacement | 2,400cc |
Running Wattage | 22,000 Watts |
Engine Speed | 1,800 Rpm |
Voltage | 120/240V |
Rated Amperage | 66A at 240-Volts |
Phase | Three |
Frequency | 60 Hz |
Low Oil Alert/Shutdown | Yes |
Coling System | Liquid cooled |
Fuel Type | LP/Natural Gas |
NG Consumption at 50-Percent Load | 190 ft3/hr |
NG Consumption at 100-Percent Load | 316 ft3/hr |
LP Consumption at 50-Percent | 2.1 gal/hr |
LP Consumption at 100-Percent | 3.4 gal/hr |
Decibel Rating at 7m | 61 dBA |
Enclosure Material | Aluminum |
Lenghth | 62.2 in. |
Width | 30.6 in. |
Height | 38.6 in. |
Product Weight | 843 lbs. |
Shipping Weight | 971 lbs. |
