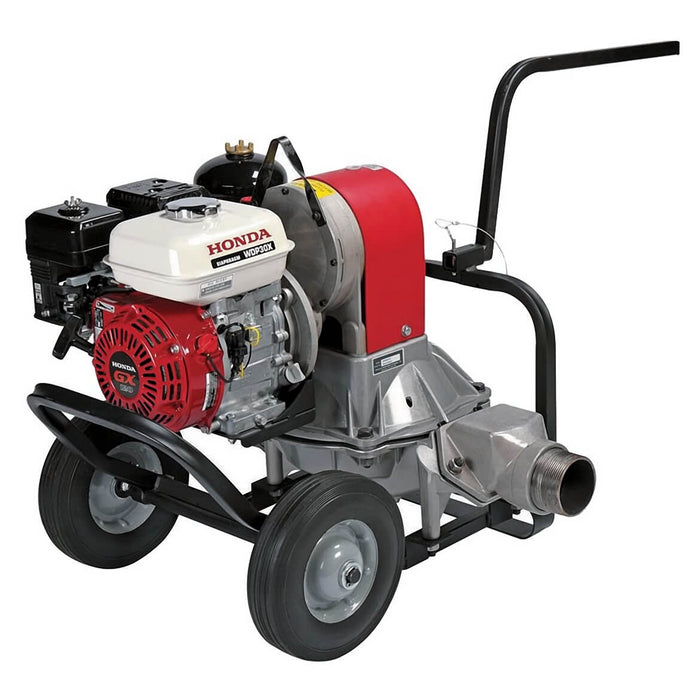

Honda WDP30 3-Inch 80-Gpm Self-Priming Diaphragm Water Sludge Pump
- Because it can run without water, the WDP30 is perfect for areas with slow seepage. For example, work sites where groundwater is slowly seeping in.
- The durable Honda GX series commercial grade engine is easy starting and provides ample power for the toughest conditions.
- Honda's WDP30 diaphragm pump is a positive displacement pumps that can pump thick sludge or water containing large solids. Instead of an impeller and a volute, diaphragm pumps use a neoprene diaphragm. The WDP30 offers an exceptional value for construction, industrial, and agricultural applications.
- High performance mounts minimize vibration, keeping the pump from walking away or burying itself in soft soil conditions. The reduced vibration also reduces wear on components, increasing the pump's durability.
- With 3 ports, the WDP30 can easily pass solids up to 2.4 through the Rock Channel.
- Features abrasion-resistant silicone-carbide seals for extended wear.
- Protects the pump by shutting the engine off when low oil is detected.
- You can rest easy, knowing your pump is covered from top to bottom for 3 full years.
- Allows large solids and high amounts of sediment to pass through the pump without harming the components
- Dry, Self-Priming 3 Diaphragm Pump
- Honda OHV Commercial Engine
- 80 Gal./Min Capacity
- Perfect For Low Volume, Dry Run Operation
- Special Rock Channel and Spring Loaded Connecting Rod Help Prevent Case Damage
What's in The Box
- 3'' Diaphragm Pump
- Owner's Manual
- 3-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
|Bore And Stroke||2.4 X 1.7|
|Priming Time||20 Sec. At 20.0 Ft.|
|Discharge Capacity||80 Gals./Min.|
|Suction Port Diameter||3 NPT|
|Discharge Port Diameter||3 NPT|
|Total Head Lift||50 Ft.|
|Suction Head Lift||16 Ft Dry, 24 Ft.Primed|
|Dimensions||L 31.5 W 30.5 H 25.7|
|Dry Weight||163 Lbs.|
|Residential Warranty||3 Years|
|Commercial Warranty||3 Years|
GIVE US A CALL: 1-800-629-4329
We Have Product Experts Available to Answer All of Your Questions.
We Offer Free Shipping on Orders Over $99. We Also Ship World Wide.
We Are A Factory Authorized Retailer Offering Full Manufacturers Warranty.
We Offer Multiple Secure Payment Options. Affirm Financing is Also Available.
We strive to provide the best customer service and product support for our customers, so you can feel confident that you are purchasing the product that best suits your needs. We have Product Experts available to answer any questions and concerns you may have, and we will work with you to ensure that your order is correct every time. Our family-run business has always put our customers first, so when you buy from us you’re family.
I have rented multiple single stage diaphragm pumps for removing muck from around my lake dock. This one is 10X better than anything I've used before! Granted, the ones I rented were used and abused. However, the WDP30 is much quieter and doesn't throw me around while I'm trying to control the intake hose. It is also very tolerant of solids (weeds, sticks,, rocks, etc.) and primes very quickly. I highly recommend this pump
