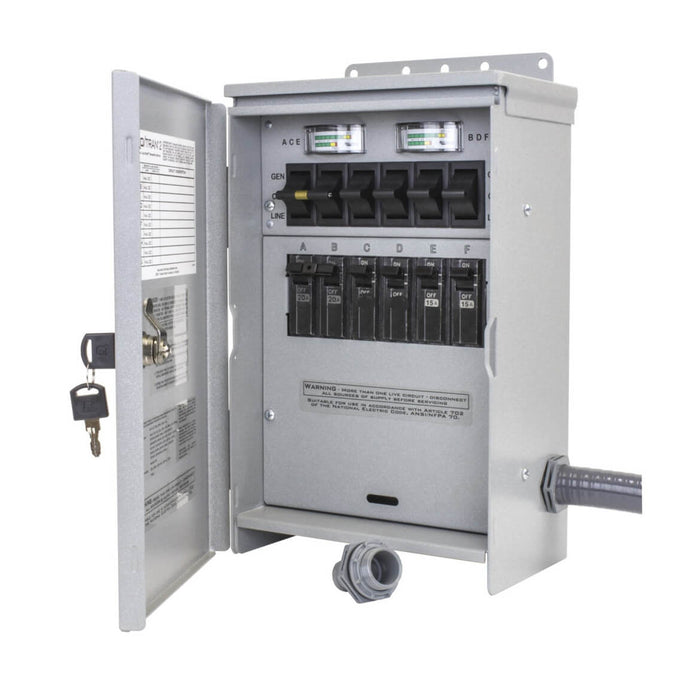

Reliance R206A 120/240-Volt 20-Amp 6-Circuit Pro/Tran Outdoor Transfer Switch

Original price $324.99 - Original price $324.99
Original price
Translation missing: en.products.general.regular_price $324.99 + Free Shipping
$324.99 - $324.99
Current price Translation missing: en.products.general.regular_price $324.99 + Free Shipping

Estimate Only, Carrier Delays May Occur
Shipping to
Ship To

Condition: New
SKU: R206A

  • Pro/Tran 2 20A 6-Circuit 120/240V Outdoor Manual Transfer Switch
  • The next generation of Loadside manual transfer switches
  • Non-Defeatable (Break-Before-Make) Double-Throw Switch
  • Eliminates dangerous backfeeds and electrical overloads
  • (4) 15A 1-Pole and (1) 20A 2-Pole; Easily re-configured in the field
  • NEW Color-Coded Built-In Wattage Meter
  • Helps you balance and manage generator load

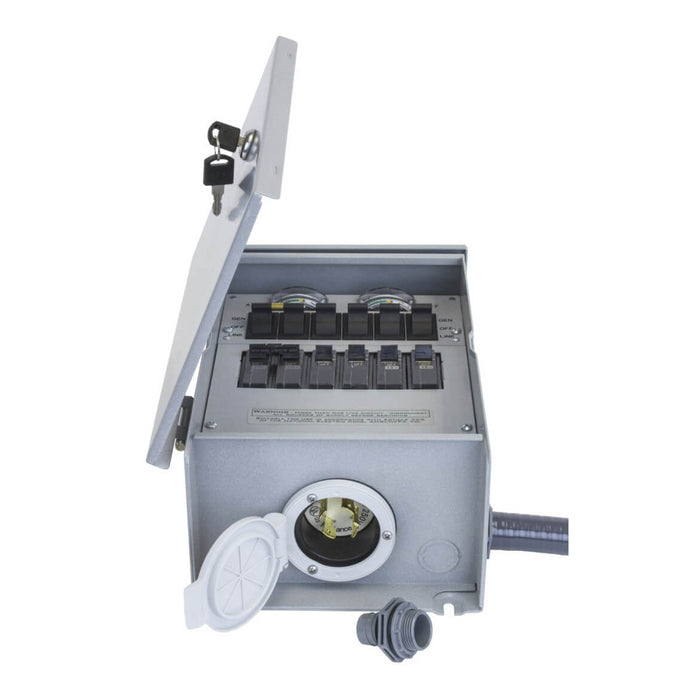

  • Factory Installed (L14-20) Power Inlet w/ Flip-Lid
  • Easily connect your generator cord on bottom of switch

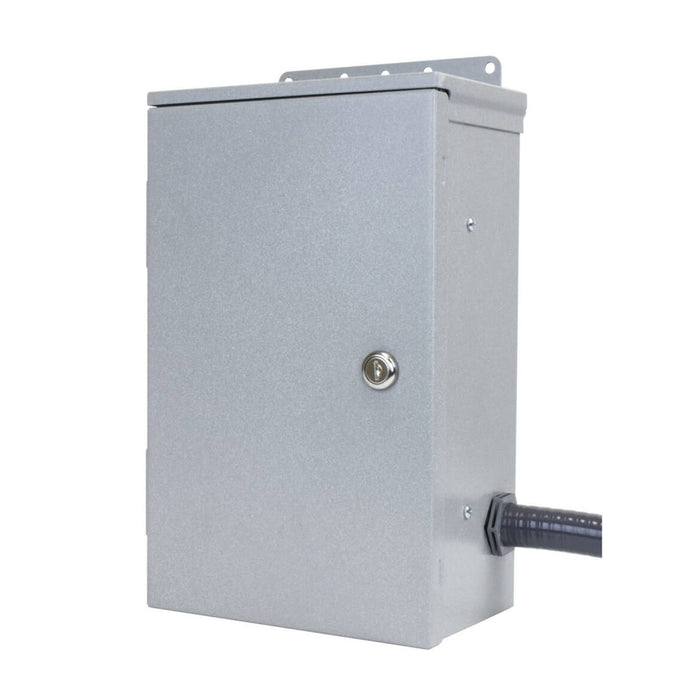

  • NEMA 3R Powder-Coated Steel Cabinet For Outdoor Installation
  • Gasketed design, provides liquid tight protection in all seasons
  • Key lockable door prevents tampering and unauthorized use
  • 16 Flexible, Non-Metalic Liquid-Tight Conduit (1) w/ Fittings
  • (5) Combination 1/2 and 3/4 knockouts for easier installation
  • Factory-marked, color-coded wires simplifies installation
  • Certified for use by Underwriter Laboratories to UL Stanard 1008
  • Meets all requirements of article 702 of the NEC ANSI/NFPA 70
What's in The Box
  • 120/240-Volt 20-Amp 6-Circuit Outdoor Transfer Switch - R206A
  • Owner's Manual
  • 5-Year Limited Factory Warranty
  • 30 Day Satisfaction Guaranteed
Model R206A
Brand Reliance
Voltage 120/240
Max. Wattage 5,000
Frequency 60 Hertz
Max. Generated Input (Amps) 20
Conduit Length (in.) 16
Circuits 4 - 15A/120V
1 - 20A/240V
Circuit Breakers 6
Weight (lbs.) 18
Dimensions (LxWxH) (in.) 13 x 8 x 5
(33.02 x 20.32 x 12.70 cm)
